The main structure of a vertical lathe includes a vertical spindle and a rotating worktable. The worktable is usually quite large and can hold heavy workpieces. The spindle is positioned vertically, which is different from the horizontal spindle of a conventional horizontal lathe. The machine has a sturdy frame to support the heavy worktable and the cutting tools. The frame is designed to provide stability and rigidity to ensure accurate machining operations.
मैक्स। एक्स-अक्ष यात्रा :
-200～+1050mmmमैक्स। Z- अक्ष यात्रा :
900mmमैक्स वर्कपीस ऊंचाई :
1400mmमैक्स वर्कपीस वजन :
8000kgआवेदन :
Power generation, shipbuilding, metallurgy, and mining.Main Structure of CNC Vertical Lathe Machine
 |

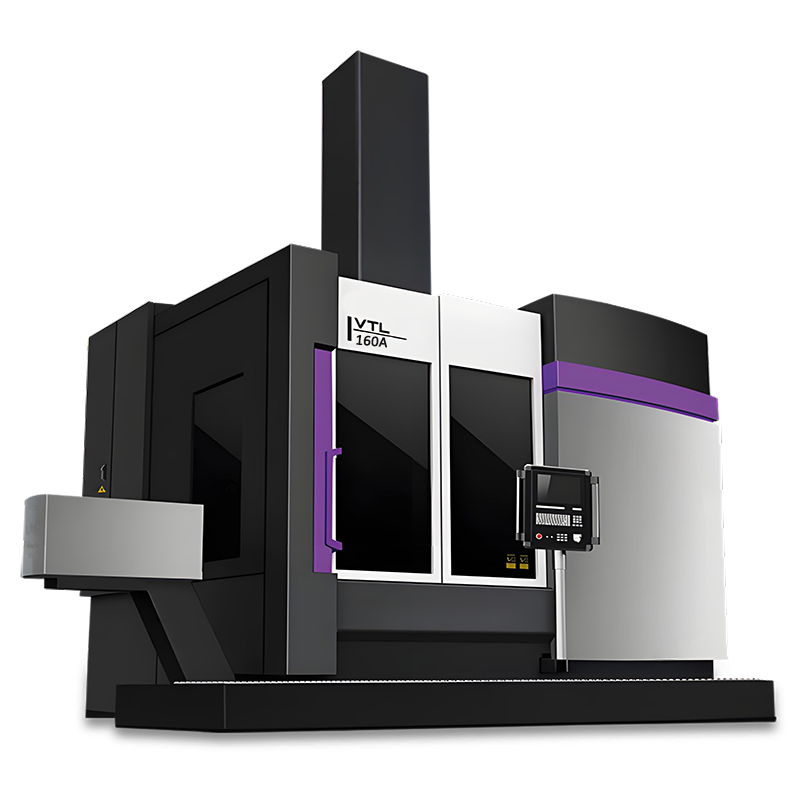

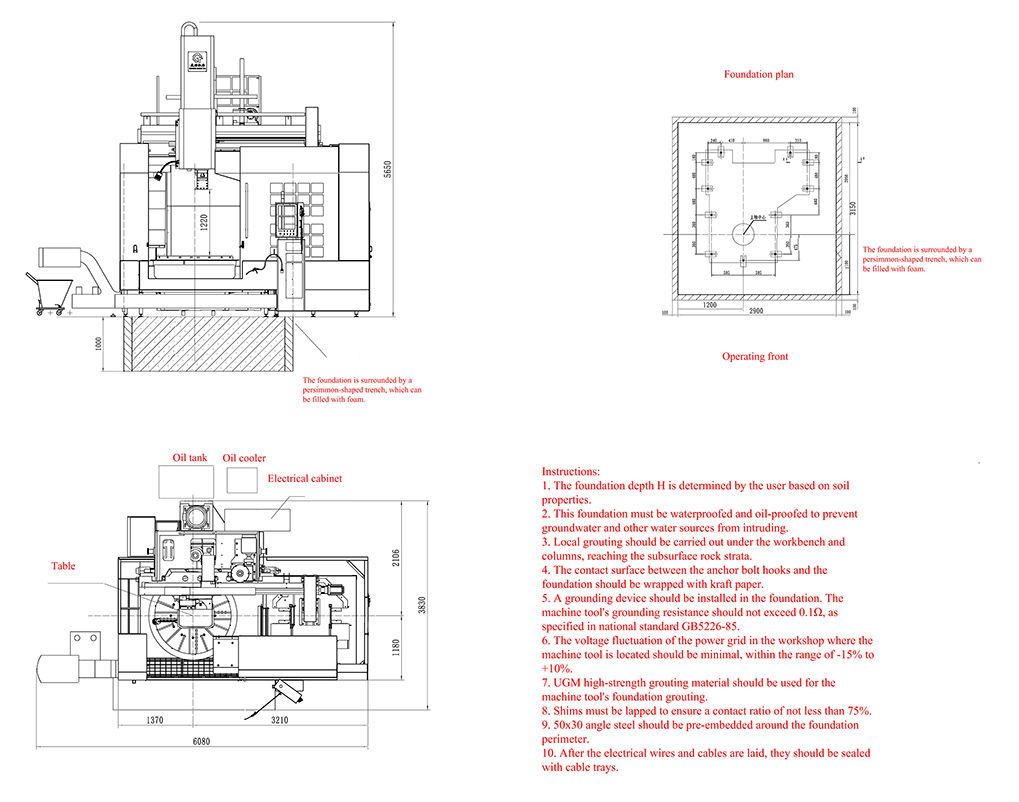

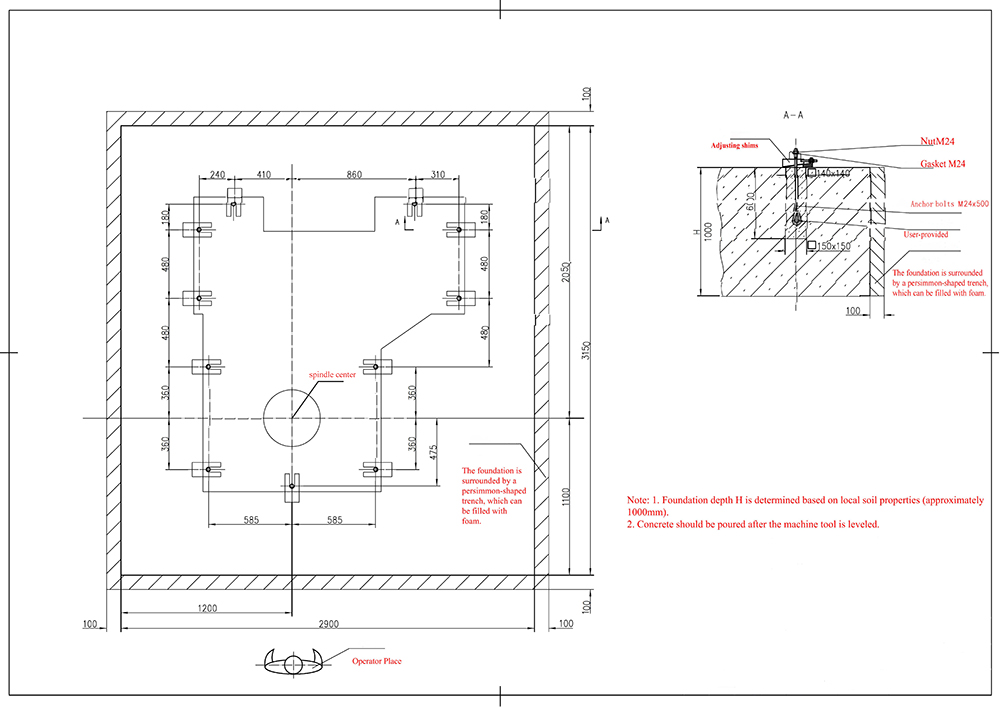

VTL-160A lathe is a single column CNC vertical lathe with movable beam, it is developed and designed by our company according to market demand, we make use of key technology process, proceed new design of lathe machine structure, do technical process research, and the work of lathe commissioning. VTL160A lathe is a single column CNC vertical lathe with movable beam, it is developed and designed by our company according to market demand, we make use of key technology process, proceed new design of lathe machine structure, do technical process research, and the work of lathe commissioning. |
Application of the CNC Vertical Lathe Machine
This CNC lathe machine is suitable for processing large parts in industries such as power generation, shipbuilding, metallurgy, and mining.
Key Technology Parameters of
| Item | Unit | Specification | |
| Main parameters | Worktable diameter | mm | 1400 |
| Max. Diameter of rotation | mm | 1700 | |
| Max. Diameter of the cutting | mm | 1600 | |
| Max. Height of work workpiece | mm | 1400 | |
| Max. Weight of work workpiece | Kg | 8000 | |
| Max. torque of worktable | N．m | 16500 | |
| Main gearbox | Rotation speed of the spindle | r/min | 1-300 |
| Main motor | Speed shift of the worktable | Gear | two gears, endless |
| Rated power/30 minutes | kW | 37 | |
| Continuous rated power | kW | 30 | |
| Ram | Ram section size | mm×mm | □220X220 |
| X-axis travel | mm | -200～+1050 | |
| Z-axis travel | mm | 900 | |
| Feeding speed | Feeding speed of cutting | mm/min | 0.1-1000 |
| Rapid feeding speed | mm/min | 6000 | |
| Tool holder | Single tool holder | 1 | |
| Turning tool rod size | mm×mm | 32×32 | |
| Tool changer | Tool tension of T-type | Number | 12 |
| Weight | Gross weight | Kg | 27500 |
| System | CNC model | FANUC oi TF | |
| Lathe Dimension | Length*width*height | mm×mm×mm | 5700X4850X5300 |
| Total power | Voltage | V | AC380 |
| Voltage fluctuation range | －10～＋10% | ||
| Frequency | Hz | 50±1 | |
| Total power | kW | 53 | |
| The total power supply includes | Main motor | kW | 30/37 |
| Hydraulic motor | kW | 3.5 | |
| Motor for the cooling pump | kW | 0.75 | |
| X-axis servo motor | N.m | 27 | |
| Z-axis servo motor | N.m | 27 | |
| Lifting Motor | kW | 5.5 | |
| NC unit | KVA | 0.05 | |
| Control Panel | KVA | 0.02 | |
| Fan motor, lighting, etc.. | kW | 0.16 | |
| Motor of chip Removal | kW | 0.2 | |
| Pressure of Hydraulic System | Mpa | 5 | |
