Application

Recommended Solution

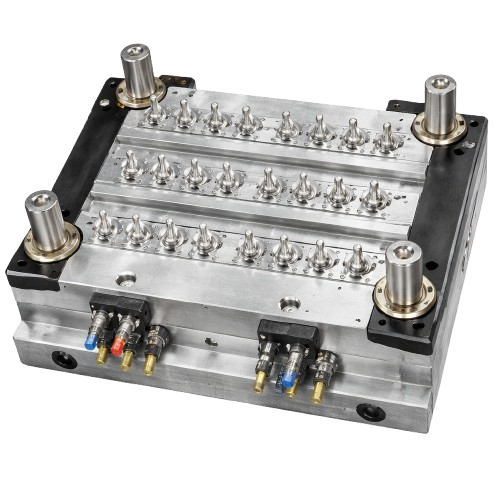

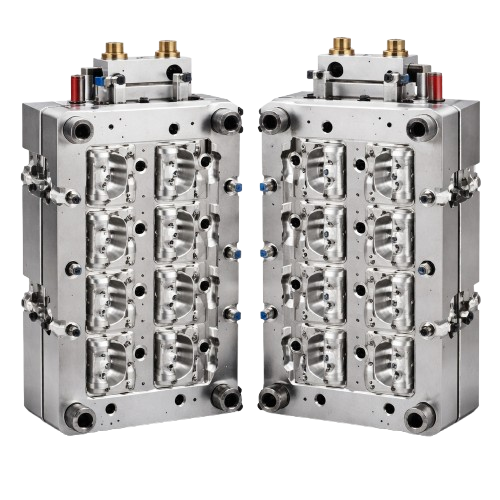

Multi-Cavity Mold

Features:

High-speed spindle combined with a responsive feed system enables fast material removal while maintaining stable machining accuracy.

Rigid machine construction reduces vibration during continuous operation, ensuring consistent performance in long production runs.

Multi-face machining capability allows multiple operations in one setup, reducing handling time and improving overall efficiency.

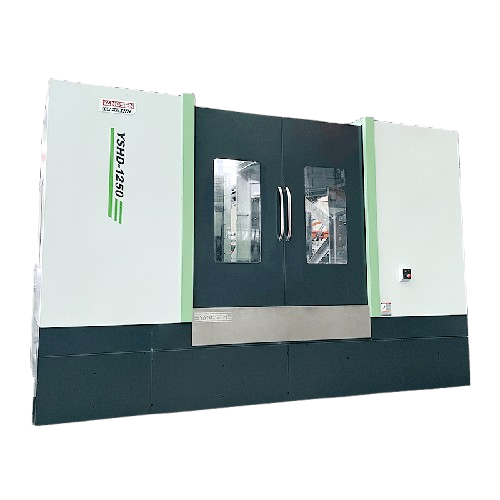

YSHD-1250

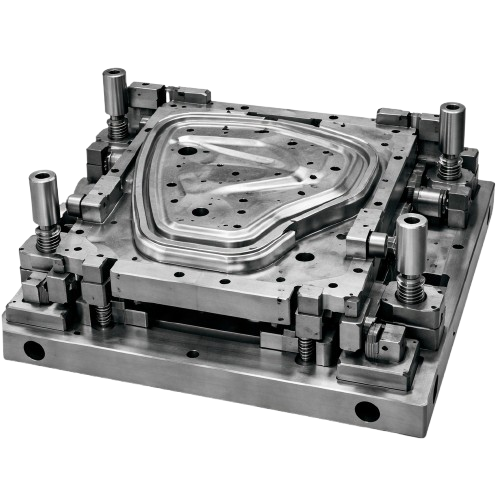

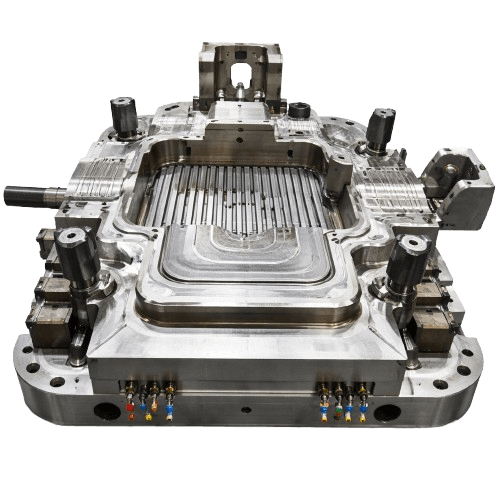

Automotive Panel Die

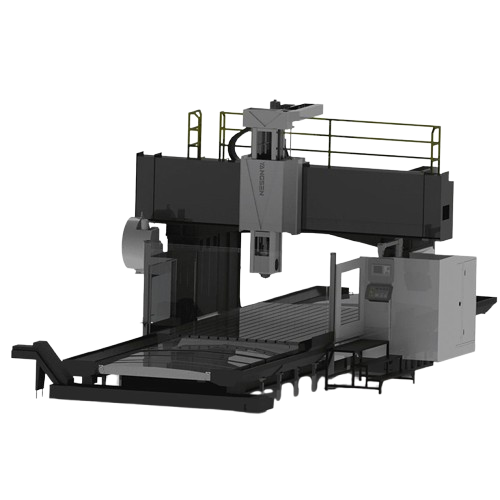

Gantry 5-Axis Machining Center

Features:

Fixed-beam double-column structure provides high rigidity and stability, ideal for heavy cutting of large workpieces.

High-performance spindle with precision feed system ensures strong cutting capability and consistent machining accuracy.

Heavy-duty guideways and optimized motion systems improve vibration resistance and maintain stability during long-time operation

YSMV-2218

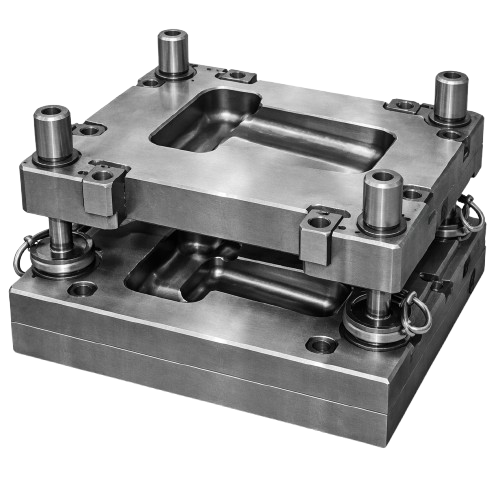

Forging Die

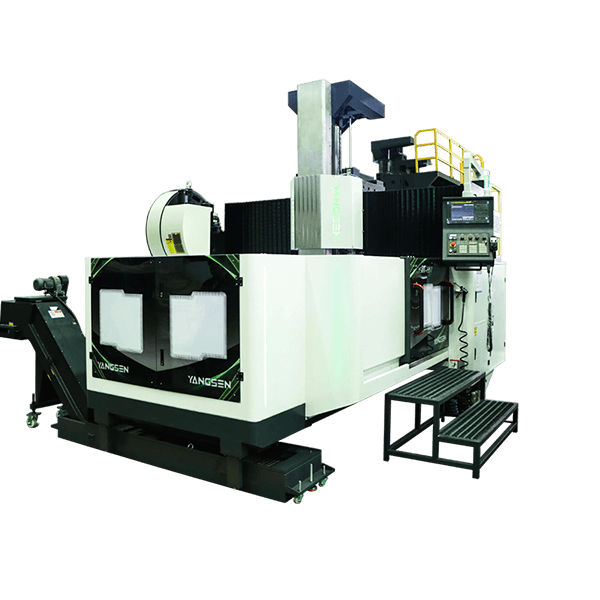

Gantry Machining Center

Features:

Double-column gantry structure with integrated table and columns provides strong rigidity and stable performance for large workpiece machining.

Wide working range and high load capacity enable efficient processing of oversized parts with consistent accuracy.

Optimized spindle and feed system support multi-process operations, including milling, drilling, tapping, and surface machining in one setup.

YSMV-5030

Die Casting Mold Base

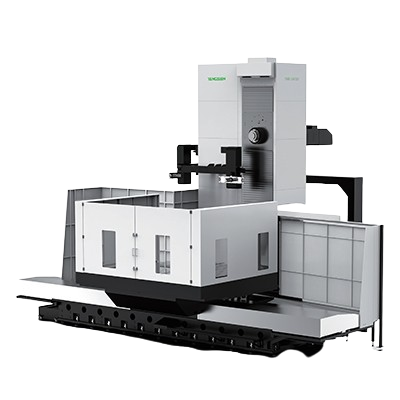

Horizontal Boring Machine

Features:

Heavy-duty cast structure with high rigidity supports machining of large workpieces up to several tons, ensuring stable performance under heavy cutting conditions.

High-precision rotary table with positioning accuracy up to ±0.01° enables accurate multi-face machining in a single setup.

Long axis travel and large working envelope allow efficient processing of oversized components while reducing repositioning and setup time.

YSBD-160/20T

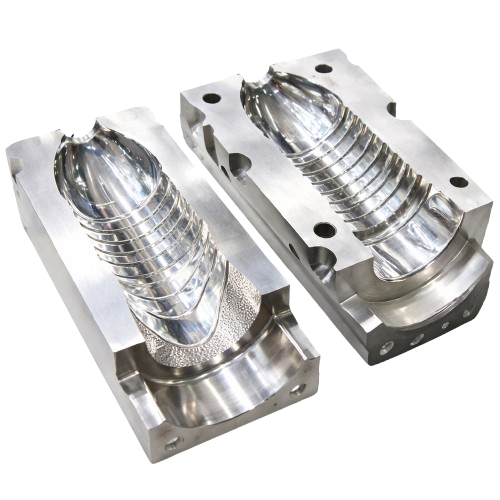

Plastic Injection Mold

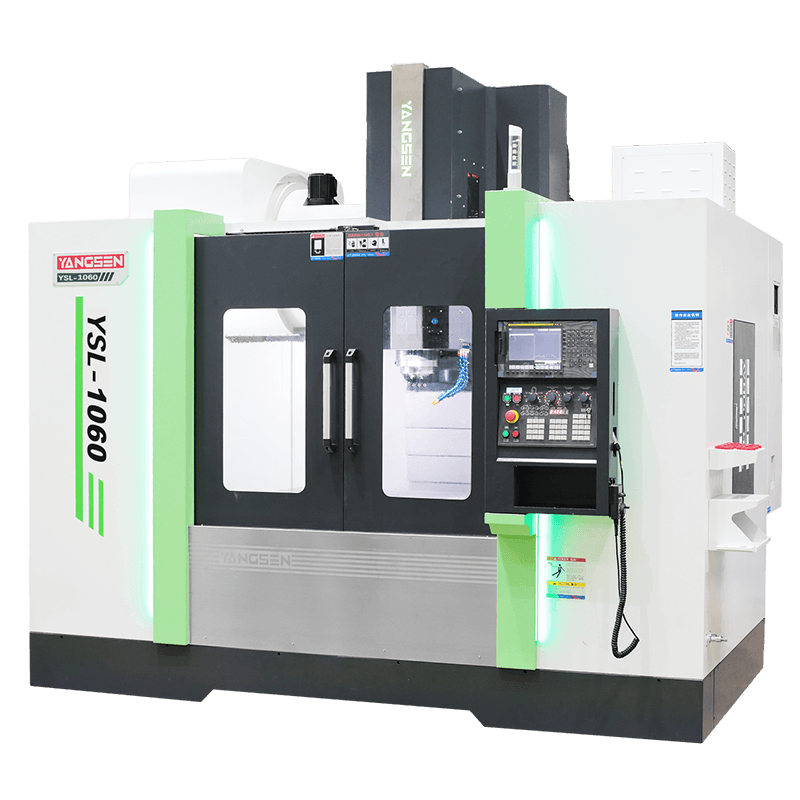

Vertical Machining Center

Features:

X/Y/Z travel of 1000 × 600 × 680 mm with up to 1000 kg table load, suitable for medium-size precision parts machining.

Multi-process capability including milling, drilling, tapping, and boring enables efficient machining of complex components in one setup.

Compact vertical structure with stable spindle performance ensures reliable accuracy and productivity in continuous production.

YSV-1060

Hot Runner Mold

Horizontal CNC Milling Machine

Features:

Horizontal machining structure with high rigidity ensures stable cutting performance and consistent accuracy during continuous production.

Automatic pallet exchange and tool change system improve efficiency and support multi-process machining in a single setup.

Optimized spindle and guideway design enhance reliability, reduce vibration, and extend tool life during long machining cycles.

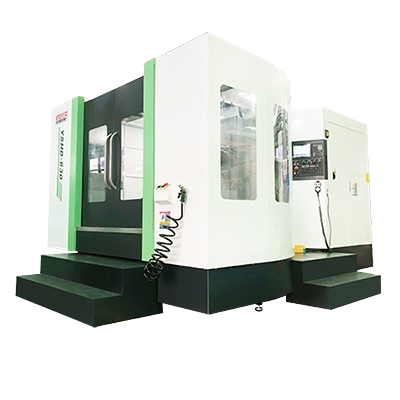

YSHD-630

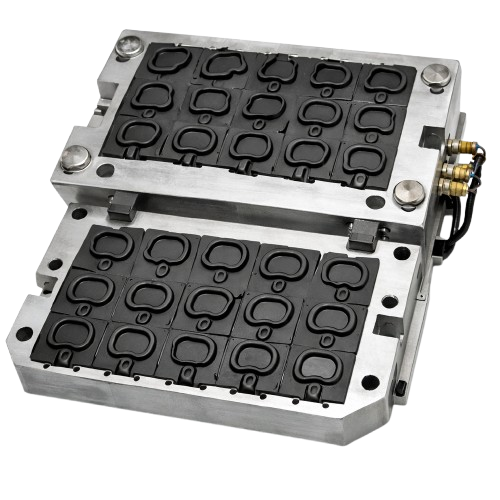

Rubber Mold

Vertical CNC Machining Centre

Features:

Compact machine layout with optimized structural balance improves dynamic response and machining smoothness.

Spindle and feed system are tuned for both precision finishing and efficient material removal across various materials.

User-friendly operation with stable performance makes it suitable for continuous production and diverse machining tasks.

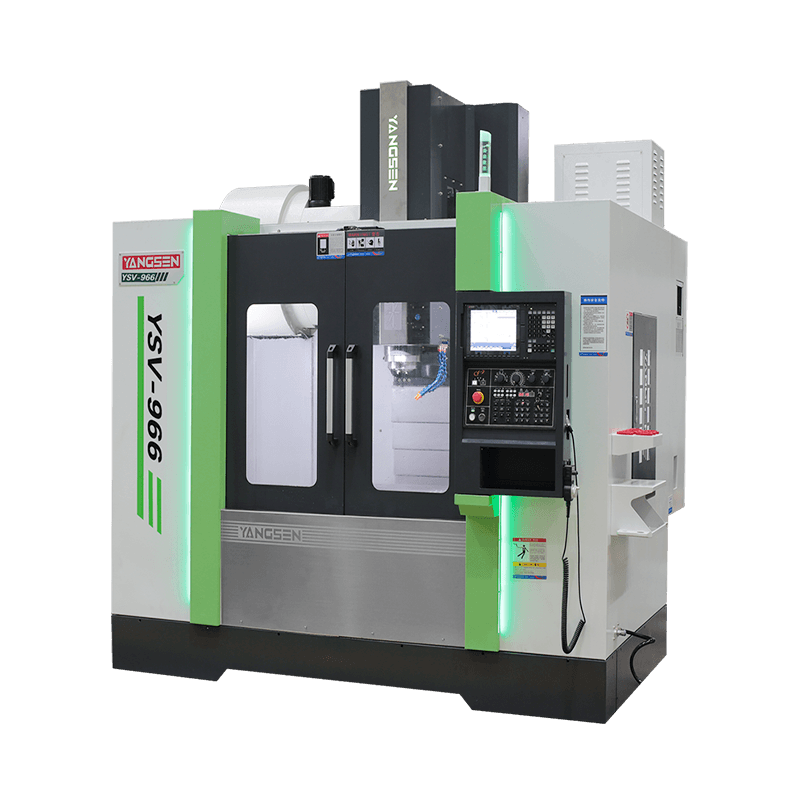

YSV-966
